Built Right From the Ground Up
Scale Foundation Design & Site Planning
The long-term performance of a weighing system starts with the foundation. Proper foundation planning helps support scale accuracy, structural stability, drainage performance, service access, and reliable operation over time.
Scales Sales & Service provides foundation planning and site coordination support for truck scales and other heavy-capacity weighing systems. Our team helps customers evaluate site conditions, operating requirements, traffic flow, and installation needs so the scale foundation is planned around real-world use.
From layout planning through construction coordination and installation readiness, we help support a foundation that protects accuracy, equipment life, and long-term performance.
Plan Your Scale Foundation With Confidence
Planning a new truck scale or heavy-capacity scale installation? Start with the right foundation. Scales Sales & Service can help review your site conditions, equipment requirements, and operational goals before installation begins.
Why Scale Foundation Planning Matters
A scale foundation affects more than the initial installation. It can impact accuracy, maintenance access, drainage, structural support, and long-term scale performance. Poor planning can lead to settling, standing water, access issues, premature wear, and recurring service problems.
Our team evaluates factors such as:
- Soil conditions and bearing capacity
- Site grade and drainage requirements
- Traffic patterns and vehicle approach
- Scale type, capacity, and application
- Foundation type and installation requirements
- Maintenance access and long-term service needs
Proper planning helps reduce avoidable issues and supports dependable weighing performance from day one.

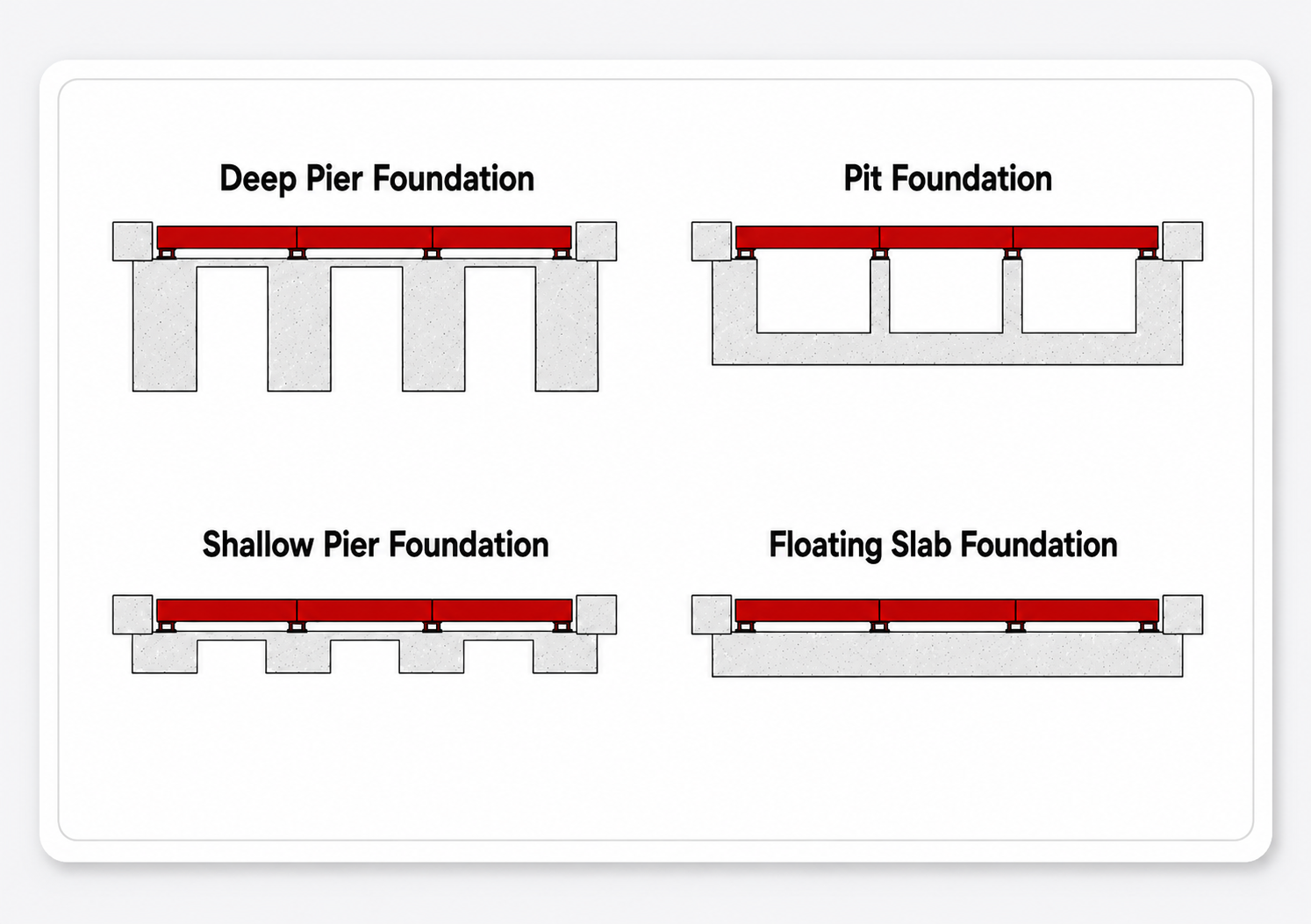

Foundation Types at a Glance
| Foundation Type | Best For | Key Considerations |
|---|---|---|
| Deep Pier | Cold climates | Extends below frost line, requires 2,500–3,000 PSF soil capacity |
| Shallow Pier | Moderate climates | Cost-effective where frost is not a concern |
| Floating Slab | Stable soil conditions | Continuous pour, requires minimum 1,500 PSF |
| Pit Foundation | Space-constrained sites | 2–6 ft depth, requires drainage and compliance planning |
Drainage & Site Coordination
Water management plays an important role in scale reliability and long-term maintenance. Drainage issues can contribute to corrosion, unstable conditions, service complications, and performance problems, especially for pit installations and outdoor vehicle scales.
Foundation planning may consider:
- Site grading and runoff management
- Drainage requirements for pit foundations
- Weather exposure and environmental conditions
- Protection against corrosion and water intrusion
- Access for future inspection, cleaning, and service
Addressing drainage early helps reduce the risk of costly corrections and equipment issues after the scale is installed.
Layout Planning for Long-Term Performance
A scale foundation should support how the operation works every day, not just where the equipment can physically fit. Traffic flow, vehicle approach, turning space, and service access all affect performance and usability.
Layout planning may include:
- Vehicle approach and exit paths
- Traffic flow and equipment movement
- Available space and site accessibility
- Ramp, approach, and clearance requirements
- Inspection and maintenance access
- Future expansion or service considerations
A well-planned layout helps improve operational efficiency while supporting safe, reliable weighing.
Foundation Coordination & Installation Support
Scales Sales & Service works with customers, contractors, site teams, and installation partners to help simplify project execution and reduce surprises during installation. Coordinating foundation details early helps ensure the site is prepared for scale delivery, placement, setup, and startup.
Support may include:
- Foundation recommendations and layout guidance
- Ramp and approach planning

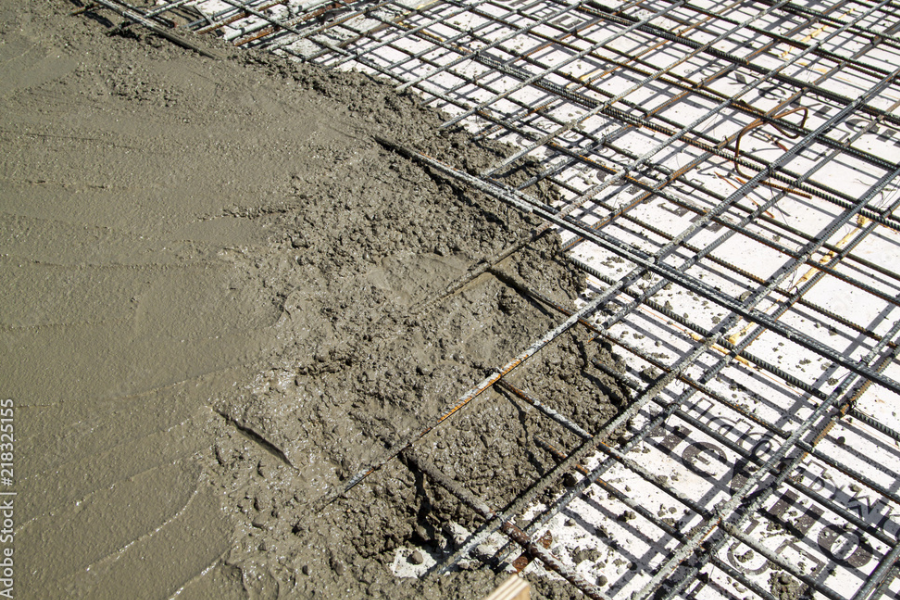

- Concrete and curing coordination
- Site readiness review before installation
- Coordination with installation and service teams
- Alignment with applicable requirements and project needs
Our goal is to help ensure your scale foundation is planned correctly and positioned for long-term performance.
Why Choose Scales Sales & Service for Foundation Planning
Scale foundation planning requires practical weighing experience, site awareness, and an understanding of how equipment will be used over time. Scales Sales & Service helps customers make informed decisions before installation begins.
- Foundation guidance aligned with weighing applications
- Support for truck scales and heavy-capacity weighing systems
- Experience with commercial, industrial, agricultural, and transportation applications
- Coordination through planning, installation, and startup
- Focus on long-term accuracy, reliability, drainage, and service access
- Responsive support throughout the project lifecycle
Scales Sales & Service helps you plan from the ground up so your weighing system is ready to perform.
